Model: LD-300DS/430DS
Packaging materials: Multilayer Composite Premade Bag(e.g.: PET/PE).
Bag Type: 3-side-seal, gussette pouch, standup pouch no-zip-lock.
Sealing Type: Straight grain, pitch is 1mm (Optional reticulate).
1-15 bags/min
Model: LD-300DS/430DS
Packaging materials: Multilayer Composite Premade Bag(e.g.: PET/PE).
Bag Type: 3-side-seal, gussette pouch, standup pouch no-zip-lock.
Sealing Type: Straight grain, pitch is 1mm (Optional reticulate).
1-15 bags/min

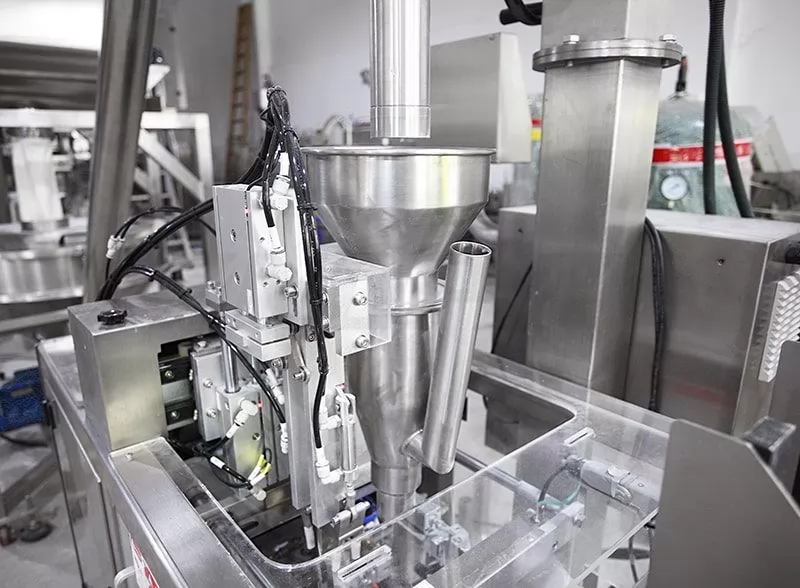

● Miniweigh Auger Filler+Mini Doypack Machine Packing Line Units included easy-dismantle screw conveyor, auger filler, gantry, mini doypack machine and output conveyor, etc;
● This is new popular packing line for the powder in the market, which can auto finish material feeding, weighing, premade pouch pick-up, open, fill and seal, etc;
● Premade pouch can be 3-side-seal, gussette pouch, standup pouch with zipper or no-zip-lock. Ideal choice for mixed powder such as spice, milk powder, glucose, seasoning, washing powder, chemical materials, pesticide, etc..
Packaging Material:
milk powder
chemical materials
washing powder
pesticide
seasoning
spice
Bag Style:
premade pouch
premade pouch
premade pouch
premade pouch
premade pouch
premade pouch
Basic Configurations:
● Touch Screen: China Kinco 7 inches corlor touch screen;
● Languages: Chinese, English, Spanish, Dutch, Italian, Korean (At most three languages);
● PLC: Japan Panasonic;
● Cylinder: Taiwai Airtac (Can be upgraded to Japan SMC);
● Vacuum Generator: China Airbest (Can be upgraded to Vacuum Pump);
● Vacuum Component: Japan SMC;
● Modular Control System For Vacuum Pressure: Japan SMC;
● Modular Control System For Temperature: China YUDIAN;
● Electrical Component: Schneider / Omron;
● Safety Key Interlock Switch;
● The main structure of the machine is SUS304 (The thickness of the rack is 3.0mm), and the material of the part is aluminum;
● The part (Hopper) in contact with the material is SUS304 (Can be upgraded to SUS316L).
Basic Functions:
● The machine stops running when the safety key interlock switch is pulled out;
● No bag prompting function;
● Self-diagnosis function of open the bag failed (The bag can be reused); In that case, the machine will not fill and seal, it will re-take the bag;
● Positioning (anti-dropping) function of hopper;
● Warning function of cartridge heater fault ;
● Warning function of cylinder fault.
● Warning function which air pressure is not up to standard.
Performance Features:
● Easy to operate and easy to replace the bag / The machine is suitable for a variety of bag types;
● Low maintenance cost / Modular replacement of the parts;
● Certificate of Conformity.
● Model: LD-300DS/LD--430DS
● Bag Material: Multilayer Composite Premade Bag(e.g.: PET/PE)
● Bag Type: 3 Side Seal Bag, Stand-up Bag
● Upgradable Bag Type: Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)
● Size Range: 80mm≤W≤300mm 100mm≤L≤400mm
● Speed: 0~15bags/min
● Sealing Type: Straight grain, pitch is 1mm (Optional reticulate)
● Sealing Width: 10mm (5--20mm can be customized)
● Voltage: 220V, Single-phase, 50/60HZ, 1.2KW
● Air Pressure: 0.65Mpa
● Air Consumption: 0.3m³/min (Standard machine, no additional function)
● Body Dimension: 1770*600*1260mm
● Packing Dimension: 1860*710*1650mm (Export non-fumigation wooden case)
