Model: LD-FD400D
Production capacity: 30-100 bags/min
Packing size: Length 220 mm×Width 140mm
Applicable raw materials: Single mask
30-100 bags/min
Model: LD-FD400D
Production capacity: 30-100 bags/min
Packing size: Length 220 mm×Width 140mm
Applicable raw materials: Single mask
30-100 bags/min

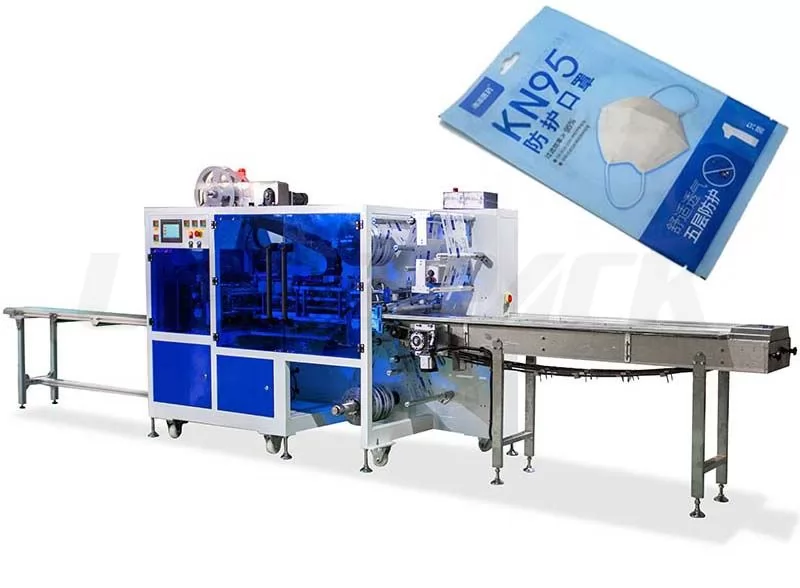

● The four-side sealing mask packaging machine is suitable for single packaging of various disposable masks, medical masks, kf94 masks, N95 masks, and fish masks. The bag type is sealed on four sides and can be punched.

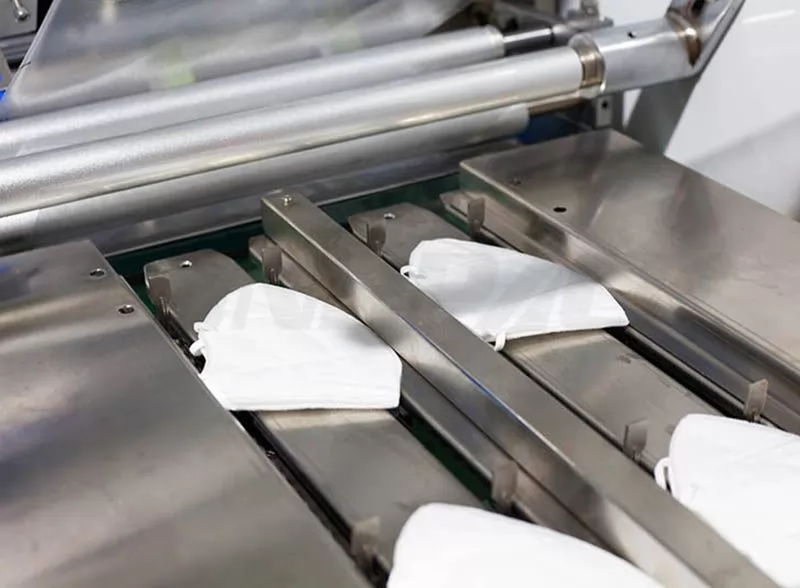

● 1. Tailstock: Made of 304 stainless steel, dual-channel servo individually controls the feeding, high efficiency; each channel adopts double push finger conveying, and the feeding is more stable.
● 2. Film unwinding mechanism: adopts two-axis film unwinding, which is suitable for different packaging materials at the same time, such as aluminum-plastic, paper-plastic, etc., independently controlled by each motor, and the film unwinding tension is more stable.
● 3. Heating sealing mechanism: Servo frequency tracking reciprocating control is adopted to improve the efficiency of heat sealing and sealing. The sealing adopts an adjustable structure, which can adjust different bag widths appropriately. It adopts five temperature control controls to independently adjust the sealing of each edge. The combined temperature makes the sealing edge more beautiful.
● 4. Slitting mechanism: It adopts an independent slitting mechanism, which can adjust different slitting widths. It adopts servo control synchronously with the rear traction mechanism. The slitting blade is made of high-speed steel and is wear-resistant.
● 5. Electric box control system; adopts full servo control system (tail plus-front traction-heat sealing-slitting / rear traction-cutting-finished product conveying), PLC adopts bus electronic cam control, suitable for controlling multi-axis synchronous motion control The system is more precise than the traditional pulse ice control.
| Main technical parameters of LPF-400 | |
| Production capacity | 30-100 bags/min |
| Diameter of film roll | maximum <MOD-DIAM> 360mm |
| Packaging film width | the widest 380mm |
| Outer bag size | the longest 360mm widest 190mm product packaging thickness 1-10mm |
| Air pressure | 0.5-0.7Mpa |
| Machine noise | less than 80db(A) decibel |
| Rated frequency | 50Hz |
| Rated voltage | AC220V |
| Transmission power | 4.2Kw |
| Heating power | 3.2Kw |
| Total weight of the machine | 1600Kg |
| Machine size | total length 5000mm* total width 1200mm* total height 1520mm |
This machine can be applied to sheet products that require sealing on four sides, such as the following products:
● Masks products: surgical mask, kn94 mask, medical masks, disposable masks;
● Daily necessities: cards, wet wipes, alcohol wipes, mobile phone stickers, mobile phone cases, hardware, small plastic parts, craft gifts, sheets, toys, stickers, non-woven fabrics, cotton pads;
● Medical supplies: plaster paste, analgesic paste, analgesic paste, gauze, medical paste, antipyretic paste, belly button paste, moxibustion paste, early pregnancy test paper, cooling paste, Gutong paste, alcohol cotton pad, motion sickness paste, artificial Breathe
● Health care: slimming patch, foot patch, eye patch, foot warming patch, heating patch, warm patch, palace warm patch, baby warmer, happy patch, fast heat patch, warm pack, foot warmer, warm bag, activated carbon self Fever-shaped bags;
After receiving your inquiry, We will send you the quotation as soon as possible.
