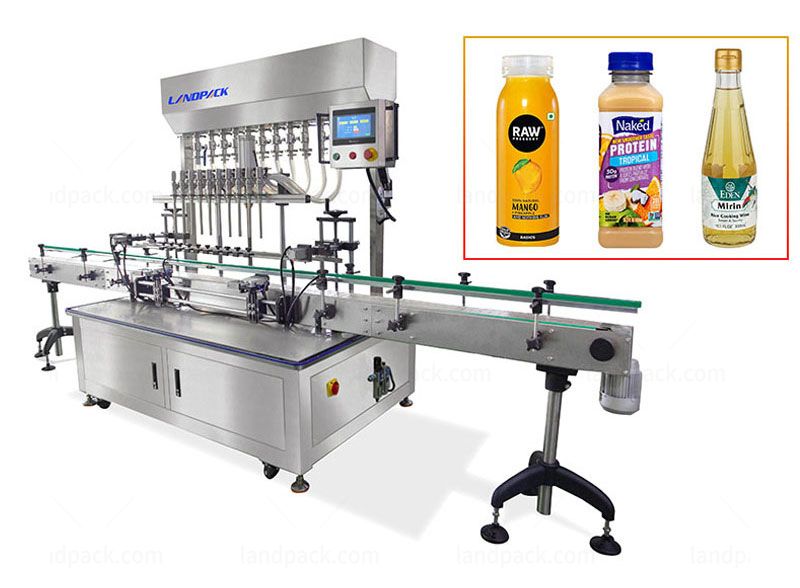

Modle: LFZ-10
Accuracy: ±1%
Powder Supply: 220V/ 50Hz
Application: It suitable for Mouthwash, soy sauce, Chemical, alcohol, Cleaning Material, Agrochemical, Pesticides, Food and Beverages, syrup, Dairy, Juice, Cosmetic and relevant.
20-50 bottle/ min
customizable
Modle: LFZ-10
Accuracy: ±1%
Powder Supply: 220V/ 50Hz
Application: It suitable for Mouthwash, soy sauce, Chemical, alcohol, Cleaning Material, Agrochemical, Pesticides, Food and Beverages, syrup, Dairy, Juice, Cosmetic and relevant.
20-50 bottle/ min
customizable
Application: It suitable for Mouthwash, soy sauce, Chemical, alcohol, Cleaning Material, Agrochemical, Pesticides, Food and Beverages, syrup, Dairy, Juice, Cosmetic and relevant.
Packaging types: bottles, cans, barrels.
● 304 Stainless steel heavy duty stainless steel welded C frame.
● All parts contact with material is SUS316, sanitary, Teflon, Viton and hoses per your requirements.
● Real time adjustability.
● No bottle no fill, PLC control
● Accurate filling volume, within ±1% and a total bottle counter.
● Easy to maintain, no special tools are required.
● Special seals or hoses by order.
● Blocked nozzles for products that tend to string and drip.
● Diving nozzles for bottom up filling of foaming products.
● Bottle mouth localizer.
● The filling head can also be added to suit your special need.
| Model | LFZ-10 |
Filling volume | 100-5000 ml (Can be customized according to your requirements) |
Filling speed | 2000-2200b/h for 500ml |
Filling precision | 1ml |
Filling head | 2/4/6/8/10(Can be customized according to your requirements) |
Bottles size | 40-100mm(diameter); 80-300mm (height) |
Air pressure | 0.6-0.8Mpa |
Weight | 700kg |
Voltage | 220V/110V; 50hz/60hz |
● It adopts PLC and servo quantitative, integrating electromechanical and pneumatic. The electrical and pneumatic components are selected from world-renowned brands and are controlled by PLC.
● The design is novel, beautiful in appearance, stable and reliable in performance, high filling accuracy, strong adaptability, simple operation, Features such as easy maintenance.
● Part of the devices can also be used for high-temperature filling at 80-95℃ after special treatment.
After receiving your inquiry, We will send you the quotation as soon as possible.
