Automatic Liquid Explosion Proof Filling Sealing Machine

Model: LFH-HX-4

Advantages:

Each machine is equipped with an explosion-proof electric box separately to isolate the electrical ignition source and achieve the purpose of explosion-proof. The line has the characteristics of wide application, high degree of automation, high filling accuracy, high production efficiency, simple operation, saving personnel, and long service life.

Speed:

15-25 Bottles/min

Bag Size:

100-500ml

Automatic Liquid Explosion Proof Filling Sealing Machine

Model: LFH-HX-4

Advantages:

Each machine is equipped with an explosion-proof electric box separately to isolate the electrical ignition source and achieve the purpose of explosion-proof. The line has the characteristics of wide application, high degree of automation, high filling accuracy, high production efficiency, simple operation, saving personnel, and long service life.

Speed:

15-25 Bottles/min

Bag Size:

100-500ml

Application:

Automatic Flammable Liquids Bottle Filling Capping Labeling And Sealing Machine(LFH-HX-4), it is suitable for filling flammable liquids, such as alcohol, fuel, glue, gasoline, kerosene, ethanol, methanol, benzene and other flammable liquids with any fluidity.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Samples

Automatic Liquid Explosion Proof  Filling Sealing Machine


1. This production line adopts automation technology, imported PLC, imported inspection light eye, frequency converter and other electrical appliances, pneumatic components. It has the characteristics of high efficiency, intelligence, wide adaptability and good stability, and is well received by users;

● 2. This line uses automatic bottle feeding, 4-head servo piston filling machine, elevator automatic capping, servo screw cap, wafer positioning round bottle labeling machine, and bottle collection to form a fully automated production line;

● 3. The filling machine uses food-specific hoses and does not contain plasticizers, which is suitable for medicine, food and other industries;

● 4. The piston cylinder of the filling machine adopts grinding and wear-resistant metering cylinder, which can automatically compensate the piston seal for long life;

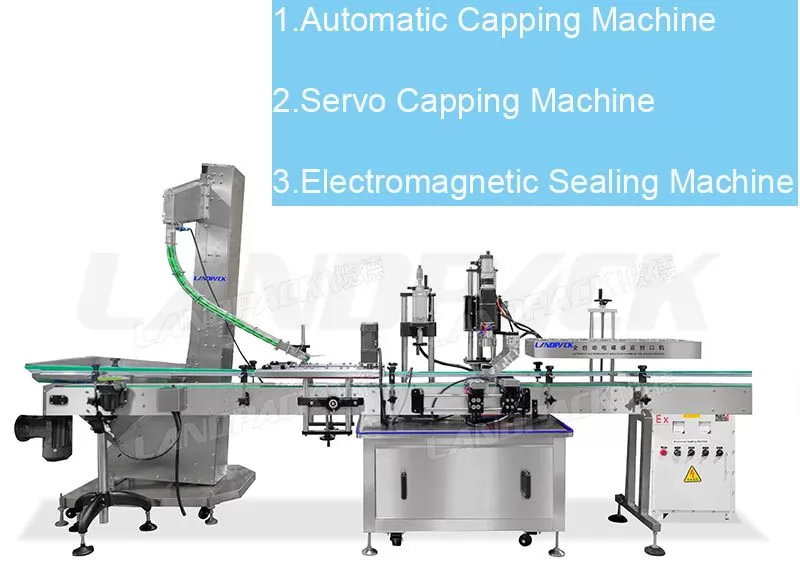

● 5. The capping machine uses a manipulator to grasp the cap, press the cap, and control the capping torque through a servo motor to achieve the capping effect;

● 6. This type of capping machine has uniform force for capping, easy to adjust the force, and it is not easy to wear the cap;

● 7. The production line has stable operation, low noise, convenient maintenance, and fully meets GMP certification requirements, and is widely used in medicine, food, cosmetics and other industries;

● 8. The whole machine is made of corrosion-resistant stainless steel, which is easy to clean and disinfect, and meets the national regulations and requirements on food machinery and food hygiene;

● 9. Imported PLC and 7-inch touch screen man-machine interface, production parameterized control, simple operation;

● 10. This kind of production line is relatively advanced, and can be improved according to the different requirements of customers, and can be made into equipment that fully meets the needs of customers. The plexiglass cover of the whole machine is designed to prevent impurities from entering the filling material, which is safe and hygienic.

ModelLFH-HX-4
Filling Range50-1000ml(customizable)
Filling Speed15-25 Bottles/min (100-500ml range)
Measurement Accuracy
±1%
Bottle DiameterΦ30mm-Φ135mm(customizable)
Bottle Height
40mm-200mm(customizable)
Control systemPLC
Total production line power
6.5KW
Power supply220V、50Hz
Airconsumption0.8-1.2m³/min
Equipment material304
Description of main packaging process:unscramble bottle → 4 head piston filling → lifting upper cover → servo capping → aluminum foil sealing → labeling → receiving bottle

1. unscramble bottle

2. 4 head piston filling

3. lifting upper cover

4. servo capping

5. aluminum foil sealing

6. labeling

7. receiving bottle
