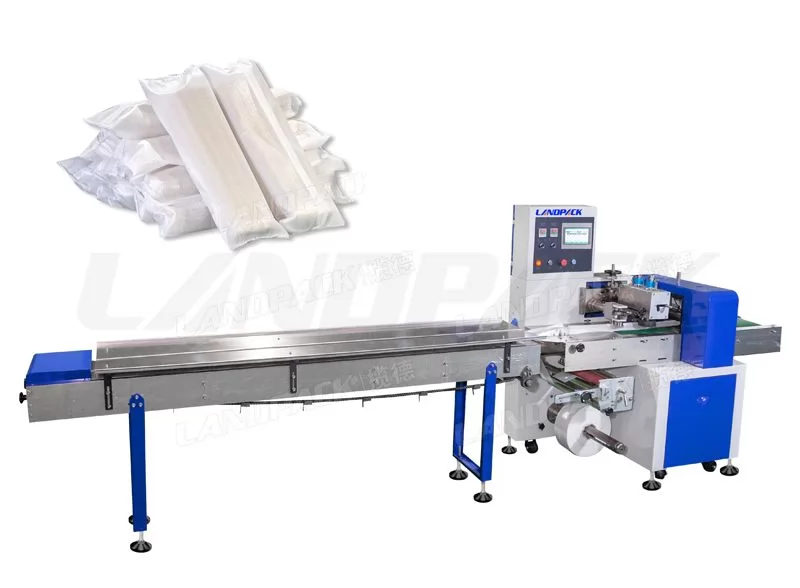

Model: LP-350X
Application: Widely used in the fastener industry and hardware industry, such as screws, gaskets, rivets, toys, electronic devices, accessories, accessories, rubber gloves, etc.
40-230 bags/min
The longest 330mm
The widest 160mm
Model: LP-350X
Application: Widely used in the fastener industry and hardware industry, such as screws, gaskets, rivets, toys, electronic devices, accessories, accessories, rubber gloves, etc.
40-230 bags/min
The longest 330mm
The widest 160mm
● Widely used in the fastener industry and hardware industry, such as screws, gaskets, rivets, toys, electronic devices, accessories, accessories, rubber gloves, etc.
Packaging Material:
Hardware
Hardware
Hardware
Hardware
Hardware
Hardware
Bag Style:
Hardware Packing
Hardware Packing
Hardware Packing
Hardware Packing
Hardware Packing
Hardware Packing
● Film drawing up system controlled by frequency motor or servo motor.
● Automatic film rectifying deviation function.
● Various alarm systems to reduce waste.
● The way of bag making: the machine can make a pillow-type bag.
● Electrical professional design, easy control, and more stable.
● It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
| Model | LP-350X |
Production capacity | 40-230 bags/min |
Diameter of film roll | maximum 320mm |
Packaging film width | the widest 350mm |
Outer bag size | the longest 330mm widest 160mm product packaging thickness Max.35mm |
Air pressure | 0.5-0.7Mpa |
Machine noise | less than 80db(A) decibel |
Rated frequency | 50Hz |
Rated voltage | AC220V |
Transmission power | 4.2Kw |
Heating power | 2.6 Kw |
Total weight of the machine | 550 Kg |
Machine size | total length 4020mm* total width 720mm* total height 1320mm |
● Date Coder
● Automatic Punching Device
● Auto labeling device
● Gas flushing device
● Cards Auto feeder
After receiving your inquiry, We will send you the quotation as soon as possible.
