Model: LDH-420A
Application: Suitable For High Speed Packing Puffed Food, Potato Chips, Popcorn, Candy, Biscuit, Sunflower Seed, Pistachio, Peanuts, Chocolate, Nuts, Pet Food, Small Metal Parts And Plastic Parts, Etc
30-120bag/min
Model: LDH-420A
Application: Suitable For High Speed Packing Puffed Food, Potato Chips, Popcorn, Candy, Biscuit, Sunflower Seed, Pistachio, Peanuts, Chocolate, Nuts, Pet Food, Small Metal Parts And Plastic Parts, Etc
30-120bag/min

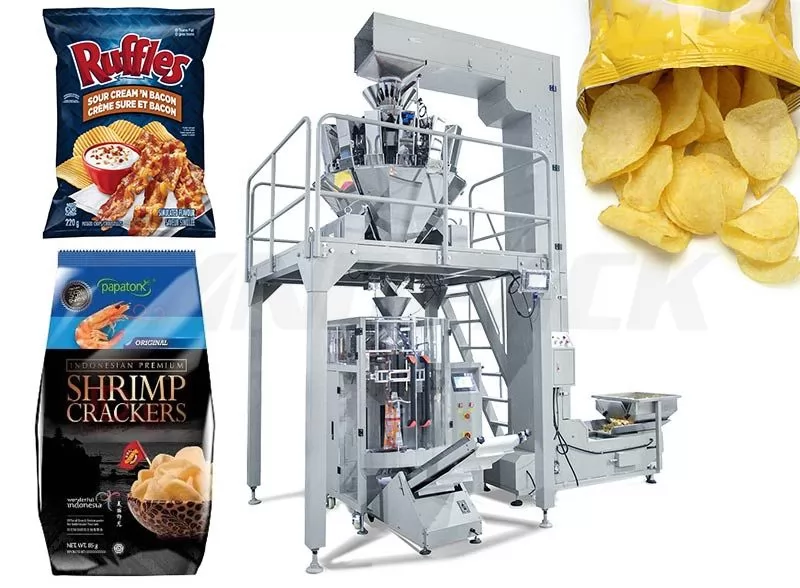

● Application: High Speed Potato Chips Banana Chips Crisp Packing Machine Max 120 Bag/Min (LDH-420A), It suitable for high speed packing puffed food, potato chips, popcorn, candy, biscuit, sunflower seed, pistachio, peanuts, chocolate, nuts, pet food, small metal parts and plastic parts, etc
● Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● This packaging solution is suitable for large production packing.
● Economical,save cost,small footprint.
● Horizontal rewind conveying the material, with large transportion.
● Feeding, Measuring, Bagging, Date printing, Charging(Exhausting) realising fully automation.
● Imported PLC control system,colorful touch screen,easy operation, intuitionistic efficient.
● Standard positioning with imported servo film transporting system and mark sensor.
● With auto warning protection function to minimize loss.
● High precision, high efficiency without crash the materials.
| Model | LDH-420A | LDH-520A | LDH-720A |
| Film Width | Max.420mm | Max.520mm | Max.720mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm |
| Roll Diameter | Max.320mm | Max.320mm | Max.320mm |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Packing Speed | 30-120bag/min | 30-120bag/min | 20-100bag/min |
| Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V 50/60Hz 3KW |
| Machine Size | (L)1217*(W)1015*(H)1343mm | (L)1488*(W)1080*(H)1490mm | (L)1780*(W)1350*(H)2050mm |
| Machine Weight | About 650kg | About 680kg | About 750kg |
| Option Device | Two synchronous belt device, air filling device, angle fold device,automatic rectifying device, hole-punching device, link bag device. | ||
● Two synchronous belt device
● air filling device
● angle fold device
● automatic rectifying device
● hole-punching device
● link bag device
After receiving your inquiry, We will send you the quotation as soon as possible.
