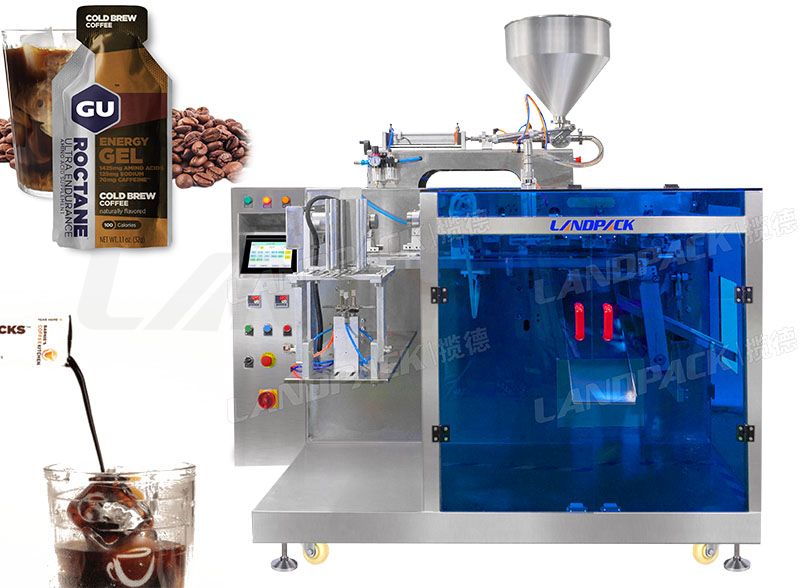

Coffee Liquid Doypack Packing Machine For Premade Bag

Model: LDSP-160

Application: Liquid/ paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste.


Speed:

25-45bag/min

Bag Size:

W: 110-230mm

L: 80-160mm


Coffee Liquid Doypack Packing Machine For Premade Bag

Model: LDSP-160

Application: Liquid/ paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste.


Speed:

25-45bag/min

Bag Size:

W: 110-230mm

L: 80-160mm

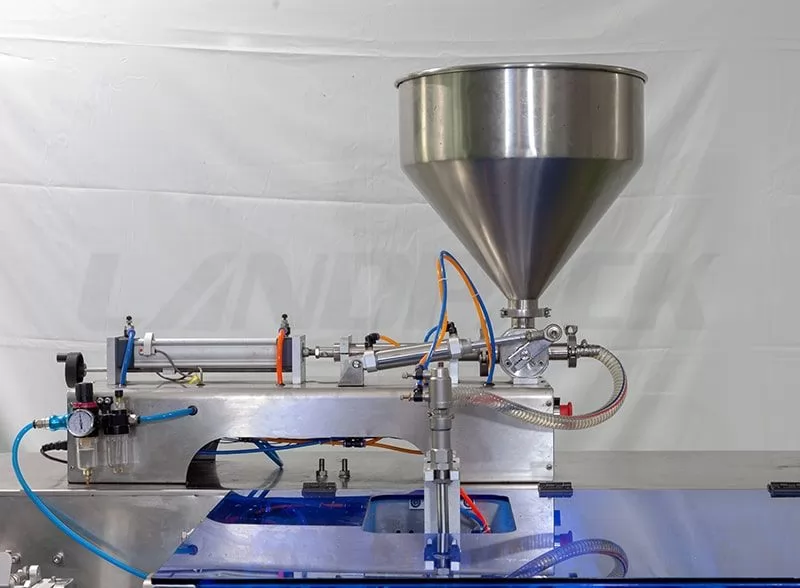

● This liquid filling packing machine consists of the liquid pump and the host packing machine. It suitable for kinds of liquid products and can pack different premade bags. It is applied for various kinds of liquid such as honey,milk, oil, ketchup, paste, sauce,fruit  juice, hand wash, laundry liquid, etc


● Different machine models available to meet a wide range premade bag size.

● Customized main machine structure for various kinds of bag shape. Like doypack zipper bag, 4 side seal bag, stand up bag and irregular bag, ect.

● With upgrade PLC control system, easy for operation on touch screen of parameter setting.

● Machine machine can equipment with different metering system like weigher, liquid pump, auger filler, bucket chain for different kinds of product filling and packing in premade bag.

ModelLDSP-160L
Packing material3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
sizeW:100-210 mm
Filling range10-1000g
Packing speed10-45 bag/min(speed is determined by the product filling quantity)
Average precision≤ ±1%
Total power2.5KW
Weight900 KG
Main standard parts1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature
controller 8.Vacuum pump 9. Inverter 10. Output system

● Servo screw auger filler

● Vacuum feeder

● Powder conveyor bel
